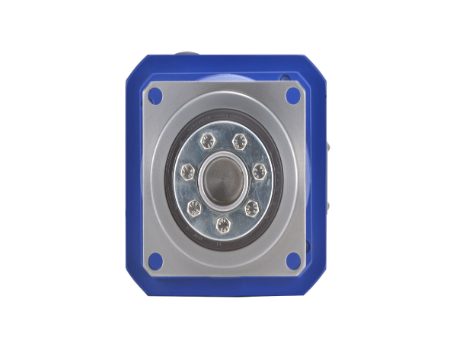

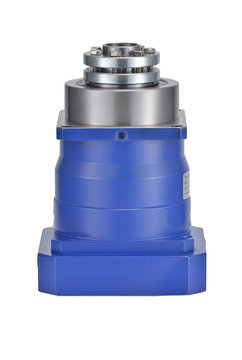

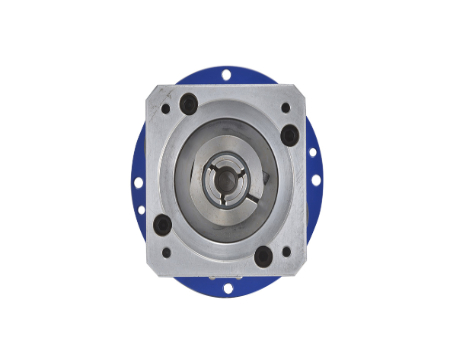

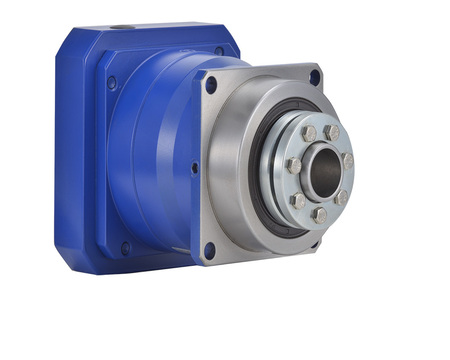

HG hollow shaft

Hollow output shaft is designed with the installation of fewer teeth and compatible with a smaller servo motor. Less torque is required to start operation and produce higher economical benefits. Ball screws can be directly installed with planetary gear reducers to reach higher accuracy.
Precision Level
Precision Level
Torsional Rigidity
Torsional Rigidity
Price Range
Price Range
Industry Applications
CNC Machine Tools
Special Purpose Machines (SPMs)
Smooth operation and low noise
  • Hardened and ground rack and pinion adopt helical and spur system.
Easy installation and weight saving
  • Pinion and output shaft of reducer are connected with high stiffness coupling。
High radial and axial load
  • Using high-quality taper roller bearing to strengthen the radial and axial load.
Rack and pinion can be adjusted to the best precision
  • With eccentric plate and simplified structure could be adjusted the position of pinion easily.
High dynamics
  • For an excellent design, high accuracy, and low moments of inertia.
High economical effect
  • Low moment characteristics could select the smaller kilowatt servo motor, further carry the cost-down out.
Perfect for linear positioning
  • Adopting ground rack and pinion; cumulative pitch error 0.03/1000mm
Long service life
  • Well design and structure
  • Using high-quality taper roller bearing
  • High-quality German seal
  • Harden and ground gear
  • Best-chosen synthetic oil
Configure your planetary gear reducers

HG Technical Data (1-stage) Ratio 3/4/5/6/7/8/10

Specifications RatiosHG100HG120HG140HG160HG180HG210HG240
Output Torque (1) T2B Nm 3202330440735105517503600
4270350510810130026004100
5270350510810130026004100
6250340445730118021503780
7240310440700113016803500
8215285410650104016003300
1019024534050090015002700
Emergency Stop Torque(2) T2Not Nm 363080011001700300062009000
471090012601850325064809500
571090012601850325064809500
665080011201700288050008950
762578011001600280055008650
855069010251470256046007200
105006509001250222039006800
Nominal Outout Torque T2N Nm 313519531550088012002000
4185240340550110019002600
5185240340550110019002600
615521032046084515802250
712518031543082010501700
812069010251470256046007200
101151602203506509501550
Nominal Input Speed n1N rpm 32600230022001800150012001100
42600230022001800150012001100
52600230022001800150012001100
62900270027002500240017001600
72900270027002500240017001600
82900270027002500240017001600
102900270027002500240017001600
Maximum Input Speed n1Max rpm 34500400036003200300025002200
44500400036003200300025002200
54500400036003200300025002200
64500400036003200300025002200
74500400036003200300025002200
84500400036003200300025002200
104500400036003200300025002200
Radial Load(3) Frmax N 360007500900011500140001800027000
460007500900011500140001800027000
560007500900011500140001800027000
660007500900011500140001800027000
760007500900011500140001800027000
860007500900011500140001800027000
1060007500900011500140001800027000
Axial Load(3) Famax N 354006700900011300140001800027000
454006700900011300140001800027000
554006700900011300140001800027000
654006700900011300140001800027000
754006700900011300140001800027000
854006700900011300140001800027000
1054006700900011300140001800027000
Micro Backlash arcmin 3≤1≤1≤1≤1≤1≤1≤1
4≤1≤1≤1≤1≤1≤1≤1
5≤1≤1≤1≤1≤1≤1≤1
6≤1≤1≤1≤1≤1≤1≤1
7≤1≤1≤1≤1≤1≤1≤1
8≤1≤1≤1≤1≤1≤1≤1
10≤1≤1≤1≤1≤1≤1≤1
Reduced Backlash arcmin 3≤3≤3≤3≤3≤2≤2≤2
4≤3≤3≤3≤3≤2≤2≤2
5≤3≤3≤3≤3≤2≤2≤2
6≤3≤3≤3≤3≤2≤2≤2
7≤3≤3≤3≤3≤2≤2≤2
8≤3≤3≤3≤3≤2≤2≤2
10≤3≤3≤3≤3≤2≤2≤2
Standard Backlash arcmin 3≤5≤5≤5≤5≤4≤4≤4
4≤5≤5≤5≤5≤4≤4≤4
5≤5≤5≤5≤5≤4≤4≤4
6≤5≤5≤5≤5≤4≤4≤4
7≤5≤5≤5≤5≤4≤4≤4
8≤5≤5≤5≤5≤4≤4≤4
10≤5≤5≤5≤5≤4≤4≤4
Torsional Rigidity Nm/arcmin 323355095150220355
423355095150220355
523355095150220355
623355095150220355
723355095150220355
823355095150220355
1023355095150220355
Efficiency with Full Load % 3≥97≥97≥97≥97≥97≥97≥97
4≥97≥97≥97≥97≥97≥97≥97
5≥97≥97≥97≥97≥97≥97≥97
6≥97≥97≥97≥97≥97≥97≥97
7≥97≥97≥97≥97≥97≥97≥97
8≥97≥97≥97≥97≥97≥97≥97
10≥97≥97≥97≥97≥97≥97≥97
Service Life LH2 h 320000200002000020000200002000020000
420000200002000020000200002000020000
520000200002000020000200002000020000
620000200002000020000200002000020000
720000200002000020000200002000020000
820000200002000020000200002000020000
1020000200002000020000200002000020000
Weight kg 38121623335685
48121623335685
58121623335685
68121623335685
78121623335685
88121623335685
108121623335685
Noise Level(4) dB 3≤62≤65≤65≤65≤66≤68≤68
4≤62≤65≤65≤65≤66≤68≤68
5≤62≤65≤65≤65≤66≤68≤68
6≤62≤65≤65≤65≤66≤68≤68
7≤62≤65≤65≤65≤66≤68≤68
8≤62≤65≤65≤65≤66≤68≤68
10≤62≤65≤65≤65≤66≤68≤68
Permissble Gear Reducer Temp. °C 3-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
4-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
5-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
6-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
7-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
8-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
10-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
Protection Class 3IP64IP64IP64IP64IP64IP64IP64
4IP64IP64IP64IP64IP64IP64IP64
5IP64IP64IP64IP64IP64IP64IP64
6IP64IP64IP64IP64IP64IP64IP64
7IP64IP64IP64IP64IP64IP64IP64
8IP64IP64IP64IP64IP64IP64IP64
10IP64IP64IP64IP64IP64IP64IP64
Lubrication 3ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
4ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
5ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
6ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
7ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
8ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
10ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
Mass Moments of Inertia kg‧cm2 34.735.9010.5016.2237.4072.10140.80
44.225.099.1012.9029.8050.5097.10
54.134.938.8512.3028.4345.2087.40
64.084.898.6311.8827.6744.1084.50
74.054.838.5011.8327.5542.6081.40
84.044.838.4811.8027.4742.2080.10
104.044.818.4611.7027.4541.9079.80
Note (1) Data are measured at the frequency under 1000 times per hour. Contact us if your data are beyond the presented table above.
Note (2) Operation can be up to 1000 times in product life.
Note (3) Act at the center of output shaft in 100 rpm.
Note (4) Noise is inspected under the condition of ratio 5; input speed 3000 rpm; 1-meter distance and free load operation.
• If any customized ratios are unavailable from above, please contact us for more.
• Consult us if your mode is continuous operation.



HG Technical Data (2-stage) Ratio 12~100

Specifications RatiosHG100HG120HG140HG160HG180HG210HG240
Output Torque (1) T2B Nm 12202330440735105517503600
15202330440735105517503600
16270350510810130026004100
20270350510810130026004100
25270350510810130026004100
28240310440700113016803500
30250340445730118021503780
35240310440700113016803500
40270350510810130026004100
50270350510810130026004100
60250340445730118021503780
70240310440700113016803500
80215285410650104016003300
10021528541050090015002700
Emergency Stop Torque(2) T2Not Nm 1263080011001700300062009000
1563080011001700300062009000
1671090012601850325064809500
2071090012601850325064809500
2571090012601850325064809500
2862578011001600280050008650
3065080011201700288055008950
3562578011001600280050008650
4071090012601850325064809500
5071090012601850325064809500
6065080011201700288055008950
7062578011001600280050008650
8055069010251470256046007200
1005006509001250222039006800
Nominal Outout Torque T2N Nm 1213519531550088012002000
1513519531550088012002000
16185240340550110019002600
20185240340550110019002600
25185240340550110019002600
2812518031543082010501700
3015521032046084515802250
3512518031543082010501700
40185240340550110019002600
50185240340550110019002600
6015521032046084515802250
7012518031543082010501700
8012017529341075510001660
1001151602203506509501550
Nominal Input Speed n1N rpm 123200300030002900280022002000
153200300030002900280022002000
163200300030002900280022002000
203200300030002900280022002000
253200300030002900280022002000
283200300030002900280022002000
303200300030002900280022002000
353200300030002900280022002000
403200300030002900280022002000
503600330032003100300024002200
603600330032003100300024002200
704200390035003300320028002400
804200390035003300320028002400
1004200390035003300320028002400
Maximum Input Speed n1Max rpm 124500400036003600360030003000
154500400036003600360030003000
164500400036003600360030003000
204500400036003600360030003000
254500400036003600360030003000
284500400036003600360030003000
304500400036003600360030003000
354500400036003600360030003000
404500400036003600360030003000
504500400036003600360030003000
604500400036003600360030003000
704500400036003600360030003000
804500400036003600360030003000
1004500400036003600360030003000
Radial Load(3) Frmax N 1260007500900011500140001800027000
1560007500900011500140001800027000
166000750090001150014000180002700
2060007500900011500140001800027000
2560007500900011500140001800027000
2860007500900011500140001800027000
3060007500900011500140001800027000
3560007500900011500140001800027000
4060007500900011500140001800027000
5060007500900011500140001800027000
6060007500900011500140001800027000
7060007500900011500140001800027000
8060007500900011500140001800027000
10060007500900011500140001800027000
Axial Load(3) Famax N 1254006700900011300140001800027000
1554006700900011300140001800027000
1654006700900011300140001800027000
2054006700900011300140001800027000
2554006700900011300140001800027000
2854006700900011300140001800027000
3054006700900011300140001800027000
3554006700900011300140001800027000
4054006700900011300140001800027000
5054006700900011300140001800027000
6054006700900011300140001800027000
7054006700900011300140001800027000
8054006700900011300140001800027000
10054006700900011300140001800027000
Micro Backlash arcmin 12≤3≤3≤3≤3≤3≤3≤3
15≤3≤3≤3≤3≤3≤3≤3
16≤3≤3≤3≤3≤3≤3≤3
20≤3≤3≤3≤3≤3≤3≤3
25≤3≤3≤3≤3≤3≤3≤3
28≤3≤3≤3≤3≤3≤3≤3
30≤3≤3≤3≤3≤3≤3≤3
35≤3≤3≤3≤3≤3≤3≤3
40≤3≤3≤3≤3≤3≤3≤3
50≤3≤3≤3≤3≤3≤3≤3
60≤3≤3≤3≤3≤3≤3≤3
70≤3≤3≤3≤3≤3≤3≤3
80≤3≤3≤3≤3≤3≤3≤3
100≤3≤3≤3≤3≤3≤3≤3
Reduced Backlash arcmin 12≤5≤5≤5≤5≤4≤4≤4
15≤5≤5≤5≤5≤4≤4≤4
16≤5≤5≤5≤5≤4≤4≤4
20≤5≤5≤5≤5≤4≤4≤4
25≤5≤5≤5≤5≤4≤4≤4
28≤5≤5≤5≤5≤4≤4≤4
30≤5≤5≤5≤5≤4≤4≤4
35≤5≤5≤5≤5≤4≤4≤4
40≤5≤5≤5≤5≤4≤4≤4
50≤5≤5≤5≤5≤4≤4≤4
60≤5≤5≤5≤5≤4≤4≤4
70≤5≤5≤5≤5≤4≤4≤4
80≤5≤5≤5≤5≤4≤4≤4
100≤5≤5≤5≤5≤4≤4≤4
Standard Backlash arcmin 12≤7≤7≤7≤7≤6≤6≤6
15≤7≤7≤7≤7≤6≤6≤6
16≤7≤7≤7≤7≤6≤6≤6
20≤7≤7≤7≤7≤6≤6≤6
25≤7≤7≤7≤7≤6≤6≤6
28≤7≤7≤7≤7≤6≤6≤6
30≤7≤7≤7≤7≤6≤6≤6
35≤7≤7≤7≤7≤6≤6≤6
40≤7≤7≤7≤7≤6≤6≤6
50≤7≤7≤7≤7≤6≤6≤6
60≤7≤7≤7≤7≤6≤6≤6
70≤7≤7≤7≤7≤6≤6≤6
80≤7≤7≤7≤7≤6≤6≤6
100≤7≤7≤7≤7≤6≤6≤6
Torsional Rigidity Nm/arcmin 1223355095150220355
1523355095150220355
1623355095150220355
2023355095150220355
2523355095150220355
2823355095150220355
3023355095150220355
3523355095150220355
4023355095150220355
5023355095150220355
6023355095150220355
7023355095150220355
8023355095150220355
10023355095150220355
Efficiency with Full Load % 12≥94≥94≥94≥94≥94≥94≥94
15≥94≥94≥94≥94≥94≥94≥94
16≥94≥94≥94≥94≥94≥94≥94
20≥94≥94≥94≥94≥94≥94≥94
25≥94≥94≥94≥94≥≥94≥94≥94
28≥94≥94≥94≥94≥94≥94≥94
30≥94≥94≥94≥94≥94≥94≥94
35≥94≥94≥94≥94≥94≥94≥94
40≥94≥94≥94≥94≥94≥94≥94
50≥94≥94≥94≥94≥94≥94≥94
60≥94≥94≥94≥94≥94≥94≥94
70≥94≥94≥94≥94≥94≥94≥94
80≥94≥94≥94≥94≥94≥94≥94
100≥94≥94≥94≥94≥94≥94≥94
Service Life LH2 h 1220000200002000020000200002000020000
1520000200002000020000200002000020000
1620000200002000020000200002000020000
2020000200002000020000200002000020000
2520000200002000020000200002000020000
2820000200002000020000200002000020000
3020000200002000020000200002000020000
3520000200002000020000200002000020000
4020000200002000020000200002000020000
5020000200002000020000200002000020000
6020000200002000020000200002000020000
7020000200002000020000200002000020000
8020000200002000020000200002000020000
10020000200002000020000200002000020000
Weight kg 129.215.220.323.735.55987
159.215.220.323.735.55987
169.215.220.323.735.55987
209.215.220.323.735.55987
259.215.220.323.735.55987
289.215.220.323.735.55987
309.215.220.323.735.55987
359.215.220.323..735.55987
409.215.220.323.735.55987
509.215.220.323.735.55987
609.215.220.323.735.55987
709.215.220.323.735.55987
809.215.220.323.735.55987
1009.215.220.323.735.55987
Noise Level(4) dB 12≤60≤65≤65≤65≤66≤68≤68
15≤60≤65≤65≤65≤66≤68≤68
16≤60≤65≤65≤65≤66≤68≤68
20≤60≤65≤65≤65≤66≤68≤68
25≤60≤65≤65≤65≤66≤68≤68
28≤60≤65≤65≤65≤66≤68≤68
30≤60≤65≤65≤65≤66≤68≤68
35≤60≤65≤65≤65≤66≤68≤68
40≤60≤65≤65≤65≤66≤68≤68
50≤60≤65≤65≤65≤66≤68≤68
60≤60≤65≤65≤65≤66≤68≤68
70≤60≤65≤65≤65≤66≤68≤68
80≤60≤65≤65≤65≤66≤68≤68
100≤60≤65≤65≤65≤66≤68≤68
Permissble Gear Reducer Temp. °C 12-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
15-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
16-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
20-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
25-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
28-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
30-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
35-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
40-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
50-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
60-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
70-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
80-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
100-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90-10~+90
Protection Class 12IP64IP64IP64IP64IP64IP64IP64
15IP64IP64IP64IP64IP64IP64IP64
16IP64IP64IP64IP64IP64IP64IP64
20IP64IP64IP64IP64IP64IP64IP64
25IP64IP64IP64IP64IP64IP64IP64
28IP64IP64IP64IP64IP64IP64IP64
30IP64IP64IP64IP64IP64IP64IP64
35IP64IP64IP64IP64IP64IP64IP64
40IP64IP64IP64IP64IP64IP64IP64
50IP64IP64IP64IP64IP64IP64IP64
60IP64IP64IP64IP64IP64IP64IP64
70IP64IP64IP64IP64IP64IP64IP64
80IP64IP64IP64IP64IP64IP64IP64
100IP64IP64IP64IP64IP64IP64IP64
Lubrication 12ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
15ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
16ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
20ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
25ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
28ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
30ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
35ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
40ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
50ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
60ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
70ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
80ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
100ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220ISO VG220
Mass Moments of Inertia kg‧cm2 124.735.9010.5010.5011.0037.5037.70
154.735.9010.5010.5011.0037.5037.70
164.205.099.009.309.3030.0031.30
204.205.079.009.209.3030.0031.00
254.124.918.839.009.0528.7030.10
284.205.079.009.209.2029.9031.00
304.084.908.638.658.6527.7029.05
354.124.918.828.909.0328.8030.08
404.044.808.458.508.5227.7028.70
504.044.808.458.498.5227.7028.70
604.044.808.458.498.5027.7028.55
704.044.808.458.498.5027.7028.50
804.044.808.458.498.5027.7028.50
1004.044.808.458.488.5027.7028.50
Note (1) Data are measured at the frequency under 1000 times per hour. Contact us if your data are beyond the presented table above.
Note (2) Operation can be up to 1000 times in product life.
Note (3) Act at the center of output shaft in 100 rpm.
Note (4) Noise is inspected under the condition of ratio 5; input speed 3000 rpm; 1-meter distance and free load operation.
• If any customized ratios are unavailable from above, please contact us for more.
• Consult us if your mode is continuous operation.



HG dimensions (1-stage ratio 3 / 4 / 5 / 6 / 7 / 8 / 10)[mm]

規格 HG100 HG120 HG140 HG160 HG180 HG210 HG240
W1 100 120 140 160 182 210 240
※W2 min. 118 130 140 175 190 190 240
D1(g6) 90 110 130 145 160 180 200
D2 60 65 75 85 95 125 140
D3(h8) 36 44 50 55 62 75 90
D4(H6) 29 35 40 45 50 60 70
D5(H7) 24 30 30 36 40 50 60
D6(F7) max. 32 35 38 42 48 55 60
D7 9 9 11 13 13 17 17
D8 120 130 165 190 215 250 290
D9 135 155 185 215 240 279 320
※L1 183.5 197.5 221.5 226.5 260 292.5 348
L2 36 35 40 42 45 48 56
L3 32 30 31 30 30 38 40
L4 10 11 12 13.5 15 17 20
L5 97.5 104 116 120 137 156.5 174
※L6 28 28.5 34.5 34.5 48 50 78
L7 4 3 4 3 3 3 3
※L8 52 52 60 60 82 82 110
L9 11.5 12.8 14.3 14.3 17.8 18.5 22.5
L10 24 24 25.5 25.5 34 32 32
L11 22 24.5 27 27 33.5 34.5 41
L12 30 42 43 50 55 66 76
L13 45 62 63 75 85 100 112

※Actual dimensions marked above may vary from different servo motors.
We persistently research in and develop our products, and we have made every effort to maintain the specification data above correct. If there is any discrepancy between the data and real dimensions, please refer to products or may contact us for updated data.

HG dimensions (2-stage ratio 12~100)[mm]

Frame size HG100 HG120 HG140 HG160 HG180 HG210 HG240
W1 100 120 140 160 182 210 240
※W2 min. 118 130 140 140 140 190 190
D1(g6) 90 110 130 145 160 180 200
D2 60 65 75 85 95 125 140
D3(h8) 36 44 50 55 62 75 90
D4(H6) 29 35 40 45 50 60 70
D5(H7) 24 30 30 36 40 50 60
D6(F7) max. 32 35 38 38 38 48 48
D7 9 9 11 13 13 17 17
D8 120 130 165 190 215 250 290
D9 135 155 185 215 240 279 320
※L1 222 237.5 264.5 269.5 281 338.5 366
L2 36 35 40 42 45 48 56
L3 32 30 31 30 30 38 40
L4 10 11 12 13.5 15 17 20
L5 136 144 159 163 171.5 204.5 222
※L6 28 28.5 34.5 34.5 34.5 48 48
L7 4 3 4 3 3 3 3
※L8 52 52 60 60 60 82 82
L9 11.5 12.8 14.3 14.3 14.3 17.8 17.8
L10 L10 24 24 25.5 25.5 25.5 34
L11 22 24.5 27 27 27 33.5 33.5
L12 30 42 43 50 55 66 76
L13 45 62 63 75 85 100 112

※Actual dimensions marked above may vary from different servo motors.
We persistently research in and develop our products, and we have made every effort to maintain the specification data above correct. If there is any discrepancy between the data and real dimensions, please refer to products or may contact us for updated data.

MACHINE TOOLS
  • CNC Gantry Milling Machine / CNC Gantry Grinding Machine
  • CNC Integrated Processing Machine / CNC Deephole Processing Machine
  • CNC Floor Boring Machine / CNC Drilling Machine
  • CNC Gantry Planing Mill / CNC Punching Machine
  • CNC Heavy Duty Lathe (Horizontal or Vertical Spindle
SPECIAL PURPOSE MACHINES
  • Packaging Machinery / Print Machine / Tapping machine
  • Textile Machinery / Tube Bending Machine / CNC Press
  • Woodworking Machine / Blow Molding Machine / Engraving Machine
  • Filling Machine / Injection Molding Machine / Spring Machine
  • Laser Cutting Machine / Laser Welding Machine
FACTORY AUTOMATION
  • Semiconductor Machinery and Equipment / Photoelectric Panel Industry
  • Gantry Loader / Automated Storage and Retrieval System
  • Medical Industry / Metal Surface Treatment Equipment
High Torque Positioning System Applications
Ordering information Installation orientation

Mounting positions

Ordering information Installation orientation



Rack

Gear

Ball screw

Related Products

DG plate-design

DG plate-design

Frame Sizes 164-785
Ratios 1-stage: 4-10

2-stage: 16-100
Torque Value 58-6100
Backlash 1-stage: 1-3

2-stage: 2-4
PG universal

PG universal

Frame Sizes 60-240
Ratios 1-stage:3-10

2-stage:12-100
Torque Value 47-4100
Backlash 1-stage:1-5

2-stage:3-7
HP hollow-shaft and outer bracket

HP hollow-shaft and outer bracket

Frame Sizes 100-240
Ratios 1-stage: 3-10

2-stage: 12-100
Torque Value 270-4100
Backlash 1-stage: 1-5

2-stage: 3-7
UM huge-torque

UM huge-torque

Frame Sizes 210-390
Ratios 1-stage: 4, 5.5
2-stage: 12-22
3-stage: 36-220
Torque Value 4190-33000
Backlash 1-stage: 1-3
2-stage: 2-4
3-stage: 3-7
