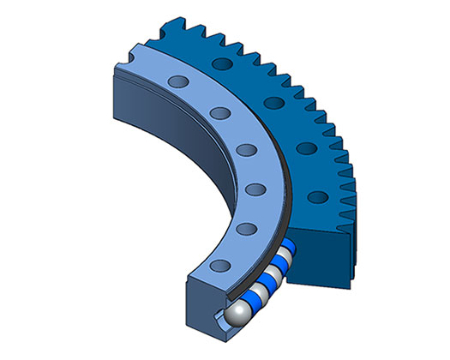

Ball Type External Gear (BTE)

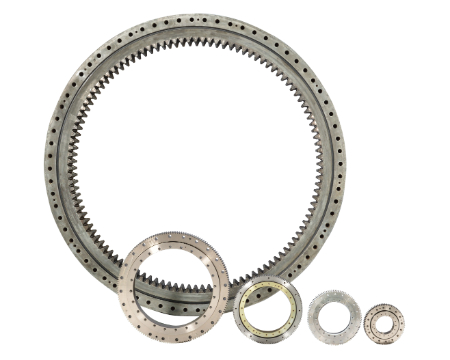

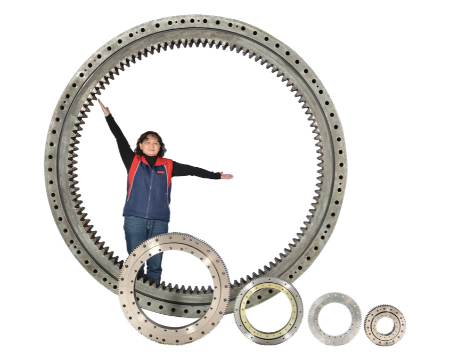

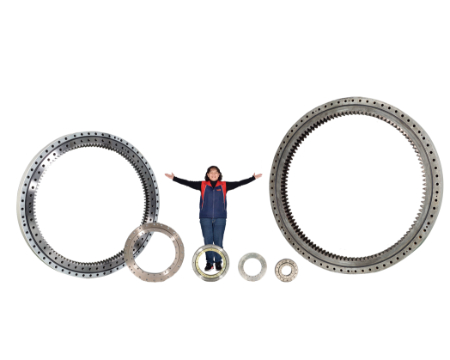

Slewing bearings support heavy axial and radial loads, along with upsetting moments. They have inner and outer rings with mounting holes, lubrication channels, and gears. Induction-hardened raceways offer wear resistance, durability, and high load capacity. Precision-ground and heat-treated gear teeth ensure smoothness and accuracy. SunUs makes standard and custom slewing bearings, up to 2500mm in diameter, for versatile applications.
Precision Level
Precision Level
Torsional Rigidity
Torsional Rigidity
Price Range
Price Range
Industry Applications
CNC Machine Tools
Factory Automation
Special Purpose Machines (SPMs)
Engineering Machinery
High-load capacity
High stiffness for rugged bearing applications
Low friction
Long service life
Surface protection and corrosion-resistance

Questions for us?
(This product has no 1-stage or 2-stage distinction)

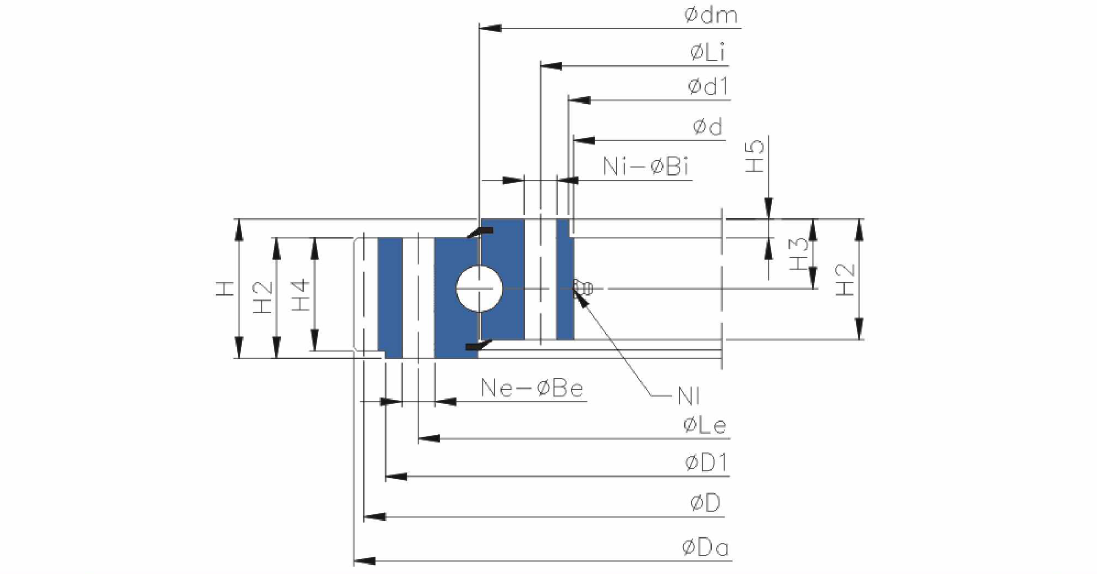

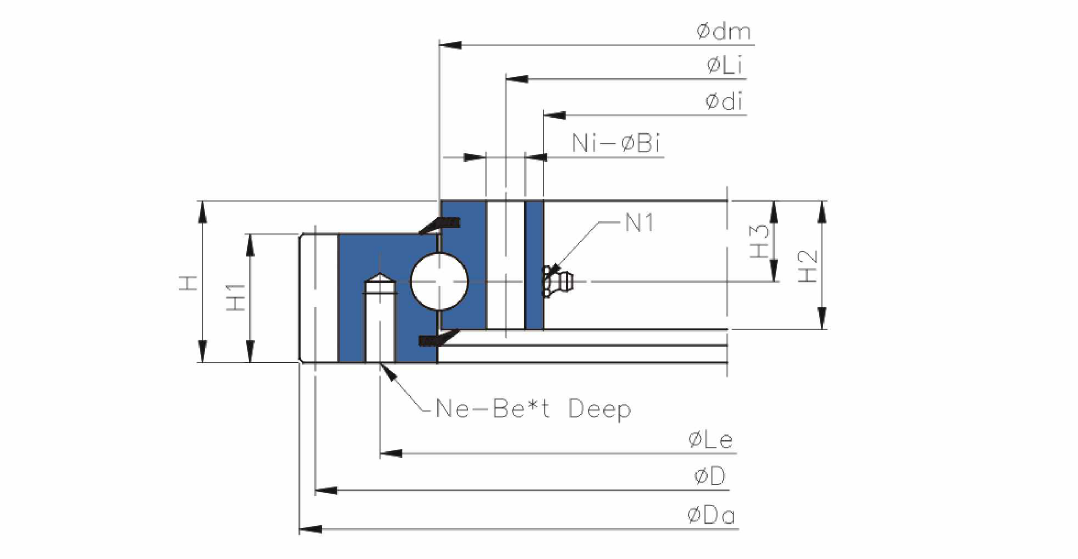

Part No.       Size             Installation Hole                            Gear Dimensions              Tooth Force         Axial Load       Weight
                                                                                                                      Outer ring             Inner ring                     Pitch diameter Module Number of teeth Addendum Modification Nominal Maximum Dynamic Static
                    dm             Da             di             H             H1             H2             H3             Le             Ne             Be             t       Li Ni       Bi             N1             D             m             z             x.m             Tfn             Tfmax             C             Co
                    mm             mm                                         mm       mm          mm                           mm                                         mm             KN             KN             kg
BTE.20.0414 414 504 342 56 44.5 44.5 28 455 20 M12 24 368  24 13.5  3 495 5 99 -0.5 16  46  209  1010 31
BTE.20.0544 544 640.8 472 56 44.5 44.5 28 585 28 M12 24 498 32 13.5 4 630 5 105 -0.6 19 55.8 233 1350 43
BTE.20.0644 644 742.8 572 56 44.5 44.5 28 685 32 M12 24 598 36 13.5 4 732 6 122 -0.6 19 55.8 248 1580 52
BTE.20.0744 744 838.8 672 56 44.5 44.5 28 785 36 M12 24 698 40 13.5 4 828 6 138 -0.6 20 59 262 1840 59
BTE.20.0844 844 950.4 772 56 44.5 44.5 28 885 36 M12 24 798 40 13.5 4 936 8 117 -0.8 26 77 276 2100 71
BTE.20.0944 944 1046.4 872 56 44.5 44.5 28 985 40 M12 24 898 42 13.5 4 1032 8 129 -0.8 26 77 286 2340 77
(This product has no 1-stage or 2-stage distinction)

Part No.       Size             Installation Hole                            Gear Dimensions              Tooth Force         Axial Load       Weight
                                                                                                                      Outer ring             Inner ring                     Pitch diameter Module Number of teeth Addendum Modification Nominal Maximum Dynamic Static
                    dm             Da             di             H             H1             H2             H3             Le             Ne             Be             t       Li Ni       Bi             N1             D             m             z             x.m             Tfn             Tfmax             C             Co
                    mm             mm                                         mm       mm          mm                           mm                                         mm             KN             KN             kg
BTE.20.0414 414 504 342 56 44.5 44.5 28 455 20 M12 24 368  24 13.5  3 495 5 99 -0.5 16  46  209  1010 31
BTE.20.0544 544 640.8 472 56 44.5 44.5 28 585 28 M12 24 498 32 13.5 4 630 5 105 -0.6 19 55.8 233 1350 43
BTE.20.0644 644 742.8 572 56 44.5 44.5 28 685 32 M12 24 598 36 13.5 4 732 6 122 -0.6 19 55.8 248 1580 52
BTE.20.0744 744 838.8 672 56 44.5 44.5 28 785 36 M12 24 698 40 13.5 4 828 6 138 -0.6 20 59 262 1840 59
BTE.20.0844 844 950.4 772 56 44.5 44.5 28 885 36 M12 24 798 40 13.5 4 936 8 117 -0.8 26 77 276 2100 71
BTE.20.0944 944 1046.4 872 56 44.5 44.5 28 985 40 M12 24 898 42 13.5 4 1032 8 129 -0.8 26 77 286 2340 77
  • Metal processing equipment
  • Wind turbines
  • Tunnel boring machine
  • Excavator
  • Forestry vehicle
  • Rail vehicle
  • Dock and deck cranes
  • Mobile crane
  • Water treatment equipment
  • Bottle filling system
  • Material handling
  • Cabin
  • Sea buoy
  • Stacker/reclaimer
  • Surveillance system (such as radar, camera)
  • Medical equipment
  • Tidal turbine
